Slack notifications for GitLab pipelines

Webhooks and bot tokens

tip

For programmatic posting and richer features use a Bot token (xoxb-…). Keep secrets in CI variables. Works with the Slack free plan.

1. Slack: create a workspace

Slack website

Sign up for Slack and create or join a workspace.
You can add the same account to multiple devices and browsers.
Create or use an existing channel for notifications.
1. To the right of the channel are 3 vertical dots, click on them and expand on Copy then click on Copy link.
2. Paste the text to a note and copy/save the channel ID: C0123ABCD as this will be needed in a later step.

info

Free plan works for webhooks and a bot that posts messages.

2. Slack API: create an app

Slack developer website

Type	Use when	What you get
Bot token	You need Web API methods like `chat.postMessage`, edits, threads	OAuth token `xoxb-…` with scopes such as `chat:write`; optionally `chat:write.public`. Add `incoming-webhook` only if you also want a webhook URL.

note

Adding the scope chat:write.public to the bot allows the bot to post to the channel even if it is not a member.

In the Developer portal choose Create an app → From scratch. Name it and pick your workspace.

Settings · Basic Information

App Credentials

Store the following securely:

App ID.
Client ID.
Client Secret.
Signing Secret.
Verification Token.

Display Information

App name: the app name can be different than the API app name.
Short description.
App icon & preview: square image (PNG) that renders at small sizes.
Background colour: pick a colour that assists visibility of your text.

Features · OAuth & Permissions

OAuth Tokens

Store the following securely:

Bot User OAuth Token: xoxb-REDACTED

Scopes

Bot Token Scopes

Add the following (start minimal and expand as needed):

chat:write
chat:write.public (optional; lets the bot post where it is not a member)
incoming-webhook (optional; only if you want a webhook URL too)
- In the app left sidebar open Incoming Webhooks and toggle Activate Incoming Webhooks.
- Click Add New Webhook to Workspace, choose the target channel, then Allow. Copy the URL (https://hooks.slack.com/services/T…/B…/X…).

Testing

note

Use the saved channel ID from earlier to test.

Webhook test

curl -X POST -H 'Content-type: application/json'   --data '{"text":"Hello from CI"}'   https://hooks.slack.com/services/T00000000/B00000000/XXXXXXXXXXXXXXXXXXXXXXXX

A successful response returns ok.

Bot test

Prefer channel ID not #name

curl -X POST https://slack.com/api/chat.postMessage   -H "Authorization: Bearer xoxb-xxxxxxxx"   -H "Content-Type: application/json; charset=utf-8"   -d '{"channel":"C0123ABCD","text":"Hello from a bot"}'

note

If you receive not_in_channel, invite the bot to that channel or add the chat:write.public scope and reinstall.

note

To list channels and copy the correct ID, add channels:read and reinstall. To reply in a thread, include thread_ts in your JSON body.

3. GitLab GUI

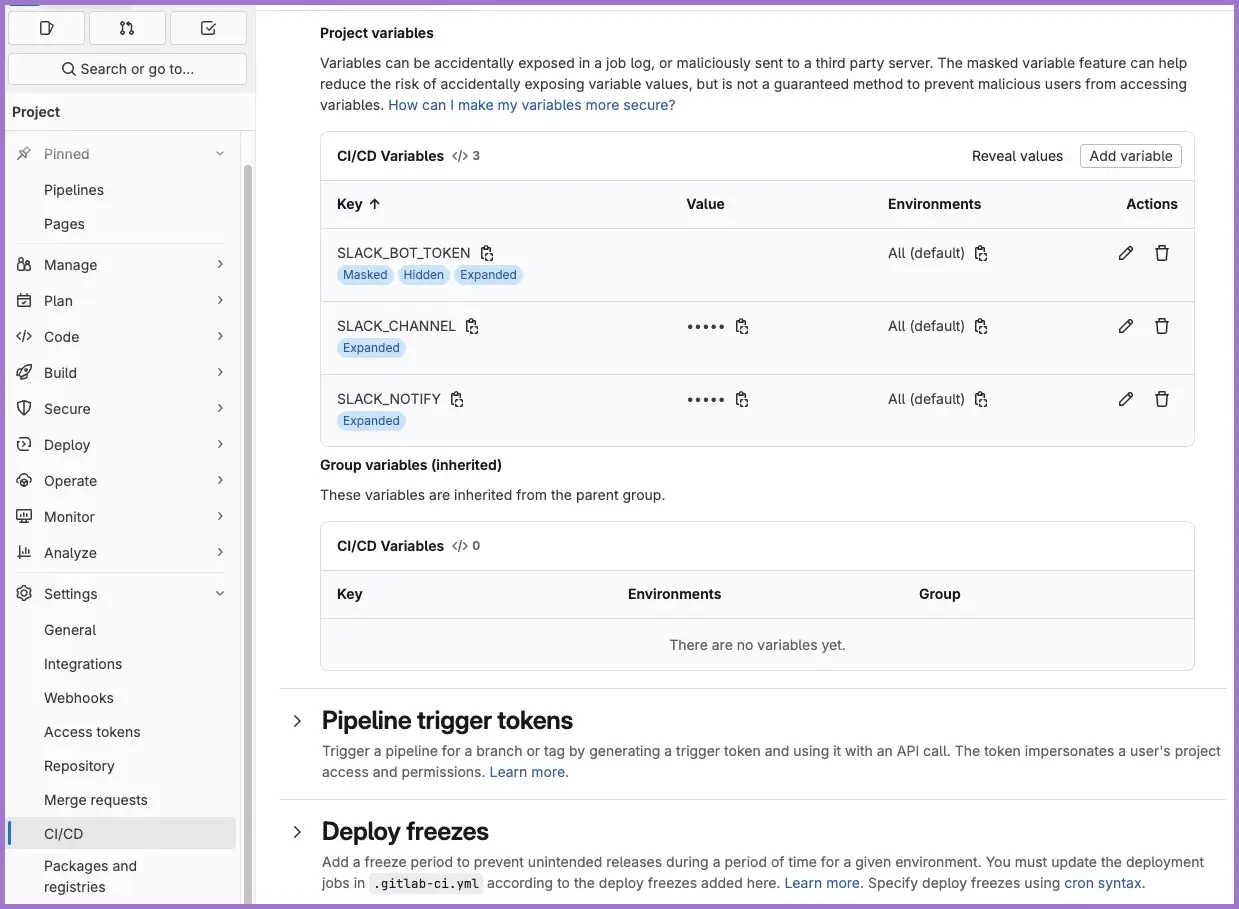

Required CI/CD variables

note

Replace xoxb-REDACTED and C0123ABCD with your own values.

From the Project navigate to Settings and click on CI/CD.
Expand Variables section.
Click Add variable and add each of the following:
1. Key: SLACK_BOT_TOKEN; Value: xoxb-REDACTED; expanded, masked and hidden but not protected
2. Key: SLACK_CHANNEL; Value: C0123ABCD; expanded but not protected
3. Key: SLACK_NOTIFY; Value: true; expanded but not protected

4. GitLab CI

Add to your existing .gitlab-ci.yml

# .gitlab-ci.yml
stages: [notify, build, notify_end]

image: node:22-alpine

cache:
  key: ${CI_COMMIT_REF_SLUG}
  paths:
    - site/node_modules/

# --- Slack threaded notifications (bot token) ---
# Required CI/CD variables - replace with your own:
#   SLACK_NOTIFY=true
#   SLACK_BOT_TOKEN=xoxb-...
#   SLACK_CHANNEL=C0123ABC

notify:start:
  stage: notify
  image: alpine:3.20
  rules:
    - if: '$SLACK_NOTIFY == "true"'
  before_script:
    - apk add --no-cache curl jq
  script:
    - |
      MSG="*Pipeline* <${CI_PIPELINE_URL}|#${CI_PIPELINE_ID}> for *${CI_PROJECT_PATH}* started on ${CI_COMMIT_REF_NAME} by ${GITLAB_USER_LOGIN}."
      MORE="${CI_COMMIT_SHORT_SHA}: $(echo "$CI_COMMIT_TITLE" | head -c 120)"
      jq -n --arg ch "$SLACK_CHANNEL" --arg msg "$MSG" --arg more "$MORE" '{channel:$ch, text:$msg,
          blocks:[
            { "type":"section","text":{"type":"mrkdwn","text":$msg}},
            { "type":"context","elements":[{"type":"mrkdwn","text":$more}]}
          ]}' > payload.json
      curl -sS -H "Authorization: Bearer $SLACK_BOT_TOKEN" -H "Content-type: application/json" -X POST https://slack.com/api/chat.postMessage --data @payload.json | tee slack.resp.json
      jq -r '.ts // empty' slack.resp.json | tee slack.ts
  artifacts:
    paths: [slack.ts, slack.resp.json]
    expire_in: 1 day

pages:
  stage: build
  script:
    - cd site
    - export SITE_URL="https://${CI_PROJECT_NAMESPACE}.pages.${CI_PAGES_DOMAIN:-reids.net.au}"
    - export BASE_URL="/${CI_PROJECT_NAME}/"
    - npm ci
    - npm run build
    - mv build ../public
  artifacts:
    paths: [public]

notify:success:
  stage: notify_end
  image: alpine:3.20
  rules:
    - if: '$SLACK_NOTIFY == "true"'
      when: on_success
  before_script:
    - apk add --no-cache curl jq
  dependencies: ["notify:start"]
  script:
    - |
      TS="$(cat slack.ts 2>/dev/null || true)"
      jq -n --arg ch "$SLACK_CHANNEL" --arg ts "$TS" --arg msg "Pipeline succeeded: <${CI_PIPELINE_URL}|#${CI_PIPELINE_ID}>." '{channel:$ch, thread_ts:$ts, text:$msg}' > payload.json
      curl -sS -H "Authorization: Bearer $SLACK_BOT_TOKEN" -H "Content-type: application/json" -X POST https://slack.com/api/chat.postMessage --data @payload.json >/dev/null

notify:failure:
  stage: notify_end
  image: alpine:3.20
  rules:
    - if: '$SLACK_NOTIFY == "true"'
      when: on_failure
  allow_failure: true
  before_script:
    - apk add --no-cache curl jq
  dependencies: ["notify:start"]
  script:
    - |
      TS="$(cat slack.ts 2>/dev/null || true)"
      jq -n --arg ch "$SLACK_CHANNEL" --arg ts "$TS" --arg msg "Pipeline failed: <${CI_PIPELINE_URL}|#${CI_PIPELINE_ID}>. Stage ${CI_JOB_STAGE}, job ${CI_JOB_NAME}." '{channel:$ch, thread_ts:$ts, text:$msg}' > payload.json
      curl -sS -H "Authorization: Bearer $SLACK_BOT_TOKEN" -H "Content-type: application/json" -X POST https://slack.com/api/chat.postMessage --data @payload.json >/dev/null

5. Testing

5.1 Pre-flight (Slack only)

Webhook: run the curl test above and confirm a message lands in your chosen channel.
Bot: run the chat.postMessage test with your channel ID; invite the bot if you see not_in_channel.

5.2 Dry-run the pipeline

Ensure project variables exist: SLACK_NOTIFY=true, SLACK_BOT_TOKEN, SLACK_CHANNEL.
In GitLab, go to CI/CD → Pipelines → Run pipeline on your working branch.
Expected Slack result:
- A new top-level message from notify:start with pipeline link and SHA context.
- A threaded reply when the pipeline succeeds or fails (from notify:success or notify:failure).

5.3 Verify thread linkage

Open the top-level message in Slack and expand the thread. You should see a single reply.
In GitLab job logs, confirm a timestamp was captured:
```
cat slack.ts && cat slack.resp.json | jq .
```
If slack.ts is empty, the first post failed; check slack.resp.json for an error (invalid_auth, channel_not_found).

5.4 Simulate failure path (optional)

Temporarily add a failing line to any job (for example in pages):

script:
  - false  # simulate a failure to test notify:failure

Re-run the pipeline and confirm a threaded failure reply appears. Revert the change afterwards.

5.5 Common checks

Channel ID is correct and bot is invited.
Secrets are masked and not protected (so they apply to branches).
Slack app is still installed in the workspace; regenerate token/webhook if removed.

Security and ops

Treat webhook URLs and bot tokens as secrets. Do not commit them. Rotate if leaked.
Scope minimally. For a bot, start with chat:write only. Add more scopes later if required.
Use JSON bodies. Slack recommends JSON for Web API calls.
Prefer a private channel for CI alerts and restrict membership.

Troubleshooting

403 or invalid_auth: token wrong or not installed to that workspace. Reinstall.
channel_not_found: wrong channel ID or the bot cannot see the channel. Use the channel ID and ensure it is public, or invite the bot.
not_in_channel: invite the bot to the channel or add chat:write.public and reinstall.
Webhook posts do nothing: the app was removed or the webhook was rotated. Reinstall or regenerate.
Cannot find “Create an app”: use the Developer portal, not the in-Slack Apps page. Admins may restrict custom apps.
